КА310
TS number
АДКБ.432130.561ТУ
Coating
gold
Case type

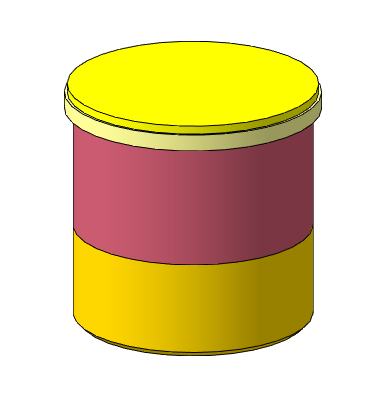

КД-10А, КД-34 (analogue), КД-35 (analogue)
Price on demand
- Technical characteristics
КА310 microwave PIN diodes are designed to operate in VHF and UHF radio-electronic equipment. They are used in microwave signal switching devices (in protective and measuring devices, radars, weather radars, phase shifters, microwave switches, attenuators).
Main electrical parameters
| Parameter name, unit of measurement (measurement mode) | Symbol | Standard | |||
| КА310А, КА310Б9, КА310В9 | КА310А1, КА310Б19, КА310В19 | ||||
| At least | At most | At least | At most | ||
| 1. Normalized continuous reverse voltage, V(Irev= 10 µA, Tс= 25±10 оС) | Urev | 500 | 800 | ||
| 2. Continuous forward voltage, V (Ifor= 100 mA, Tс= 25±10 оС) | Ufor | 0,9 | 0,9 | ||
| 3. Forward loss resistance, Ohm (Ifor= 100 mA, fmeas.= 100 MHz, Tс= 25±10 оС) | Rfor | 0,4 | 0,4 | ||
| 4. Total capacitance, pF (Urev= 100 V, Tс= 25±10 оС) | C | 2,4 | 3 | 2,4 | 3 |
| 5. Accumulated charge, nC (Ifor= 100 mA, Urev= 50 V, Tс= 25±10 оС) | Qacc | 1000 | 1000 | ||
| 6. Thermal junction-to-case resistance, оС/W (Tс= 25±10 оС) | Rj-t-c | 5 | 5 | ||
| 7. Reverse loss resistance, Ohm (Urev= 50 V, fmeas.= 1 GHz, Tс= 25±10 оС) | Rrev | 4000 | 4000 | ||
